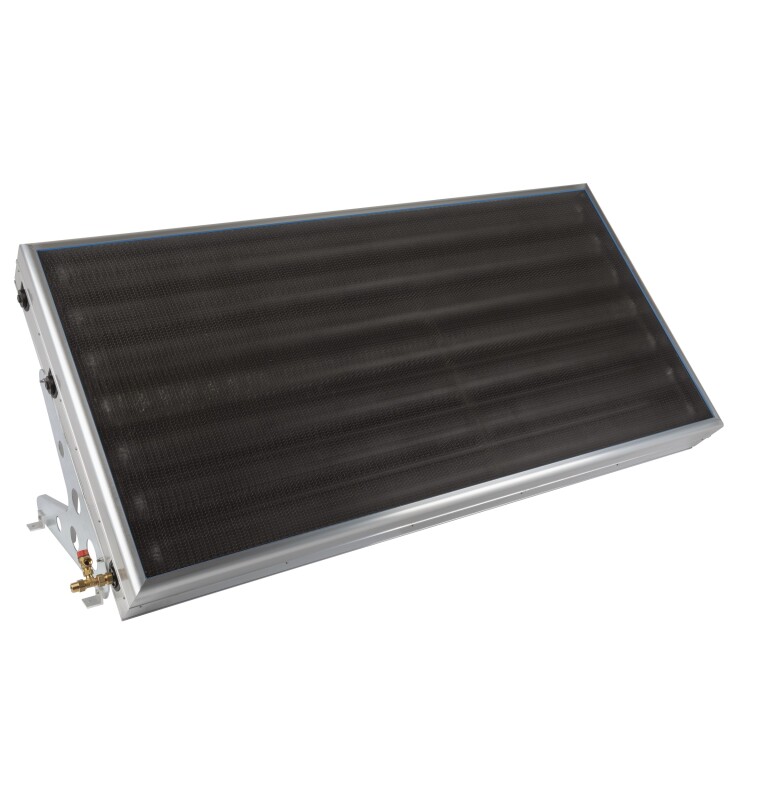

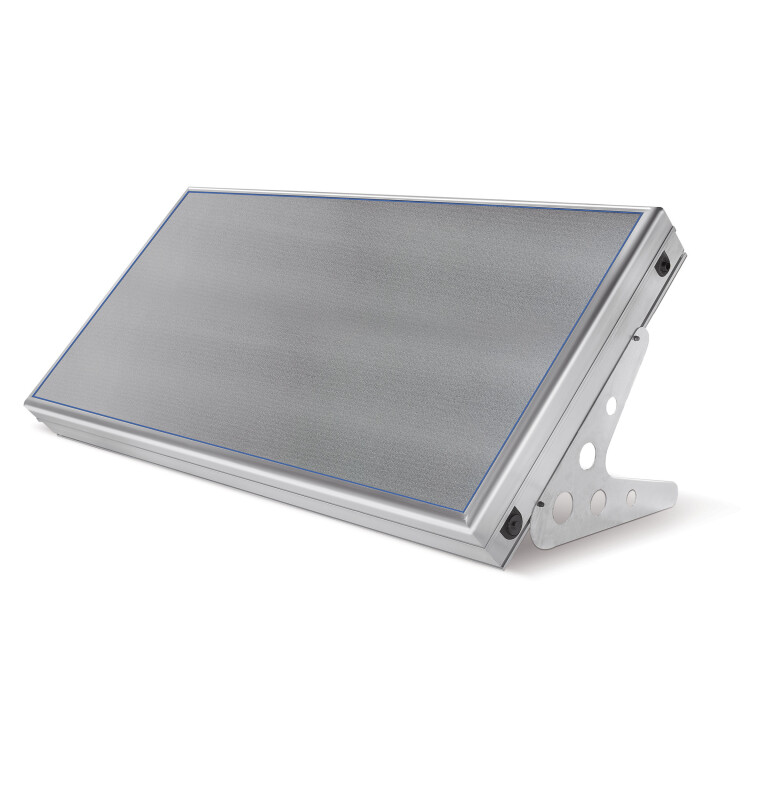

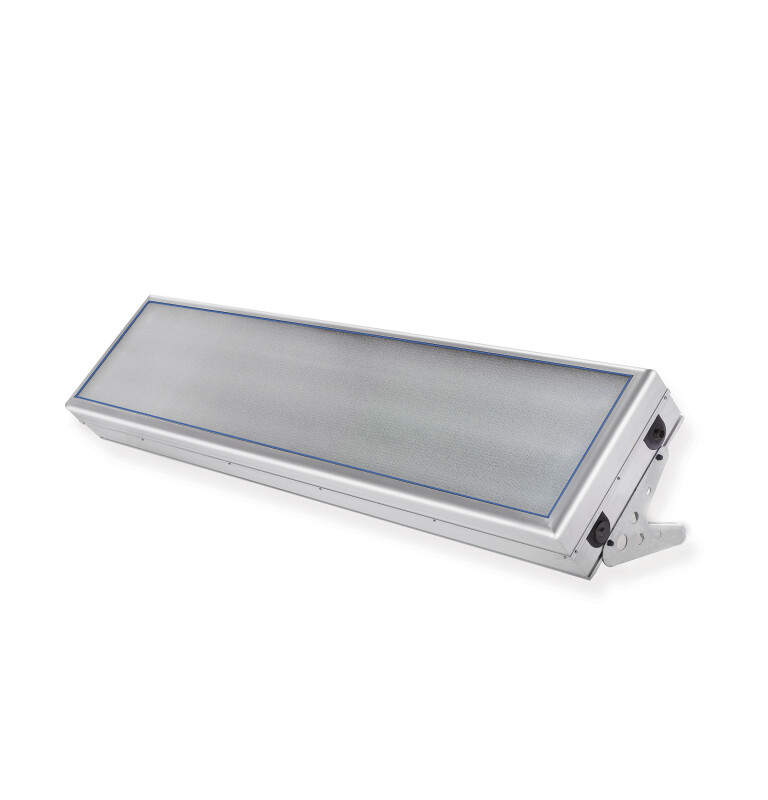

GE GeoSpring Internal Collector Storage (ICS) Solar Water Heater
Model: GT50C10BAM
Color : Gray
Key Features
Serpentine system
Storage tank
One-of-a-kind design for versatile installation
Internal tank coating
Solar glass
Clear heat insulation
Innovative frame
ENERGY STAR® certified*
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features

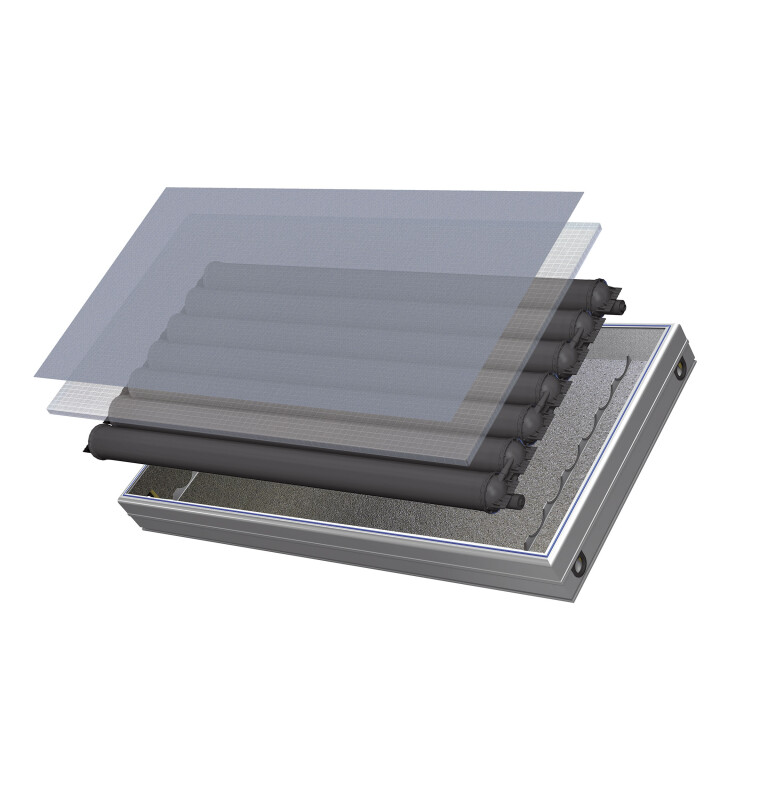

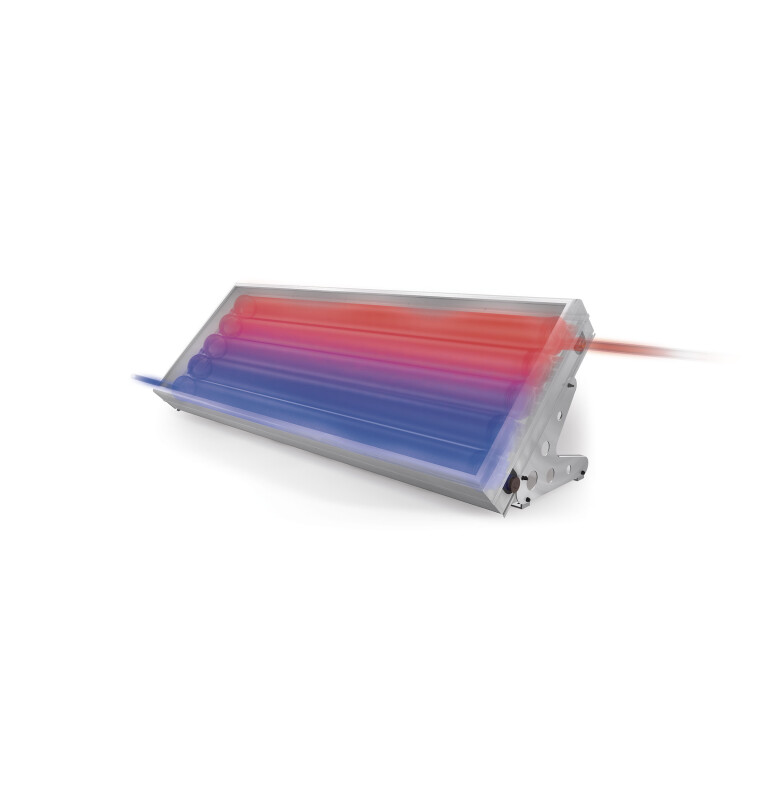

Serpentine system

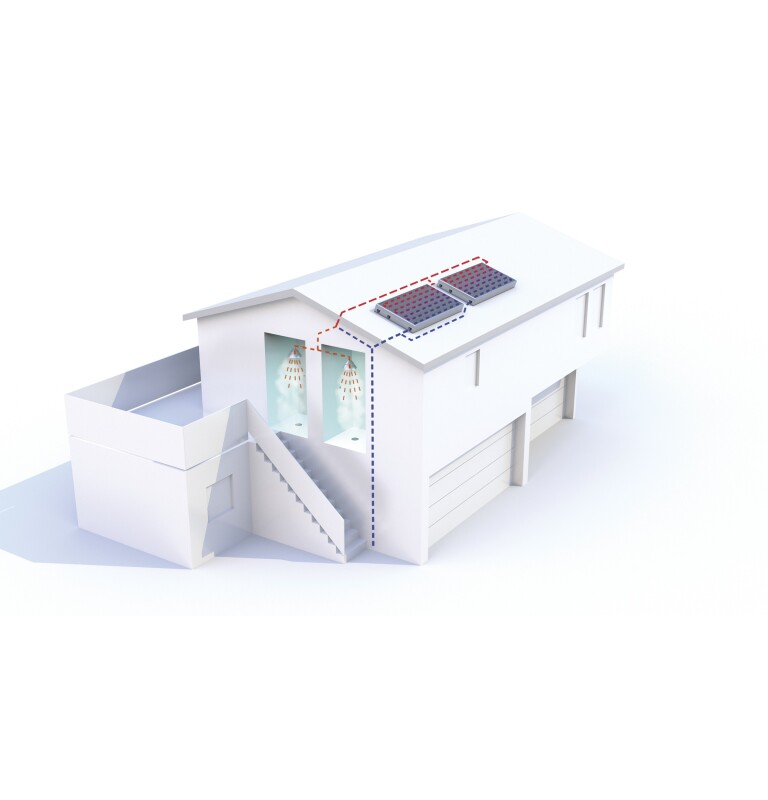

Water is heated and stored directly in the solar collector, making hot water available as soon as it’s heated by the sun
Storage tank
Integrated into the solar collector, the tank maintains hot water temperatures even if the sun isn’t shining. The pipes in the tank have a 51-gallon capacity rating, enough to satisfy the needs of the home

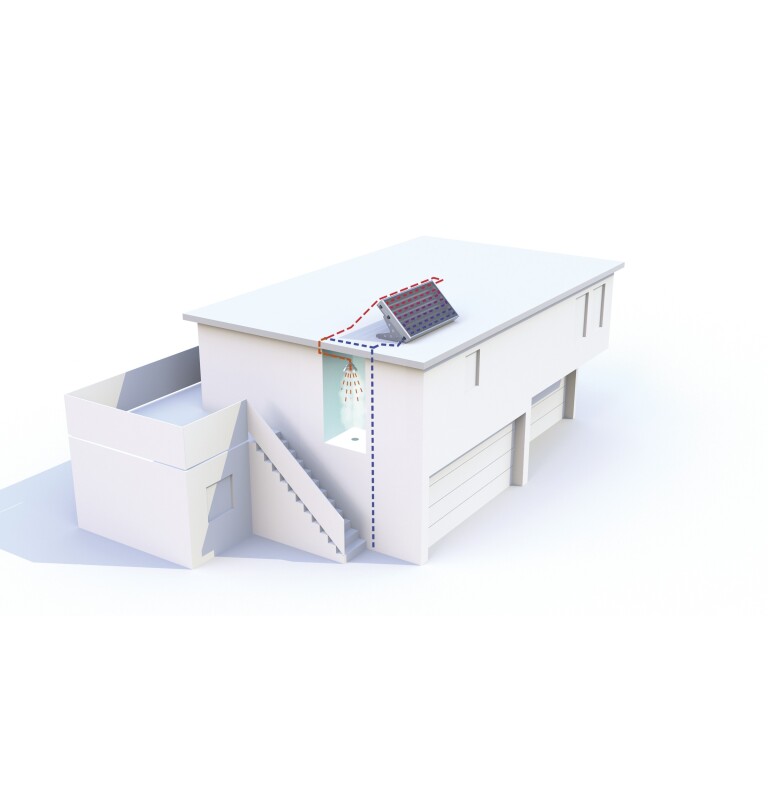

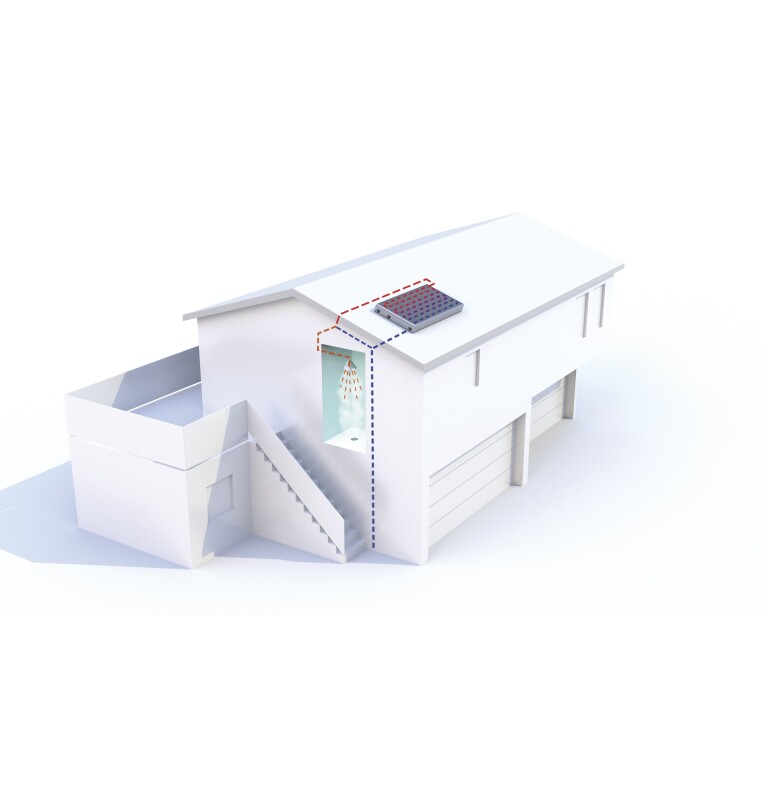

One-of-a-kind design for versatile installation
Accommodate any roof style with a unit that’s easy to set up

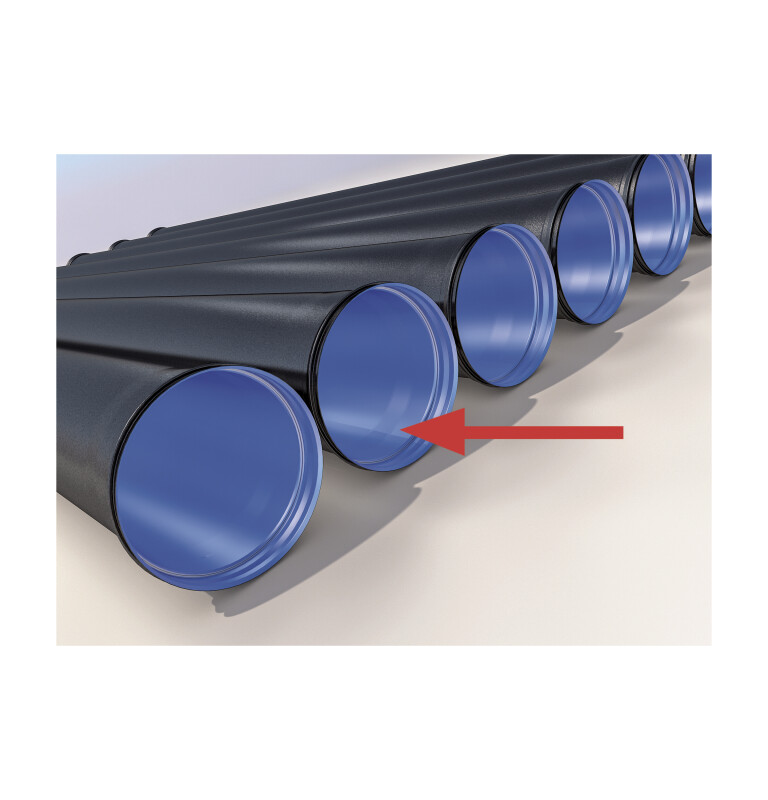

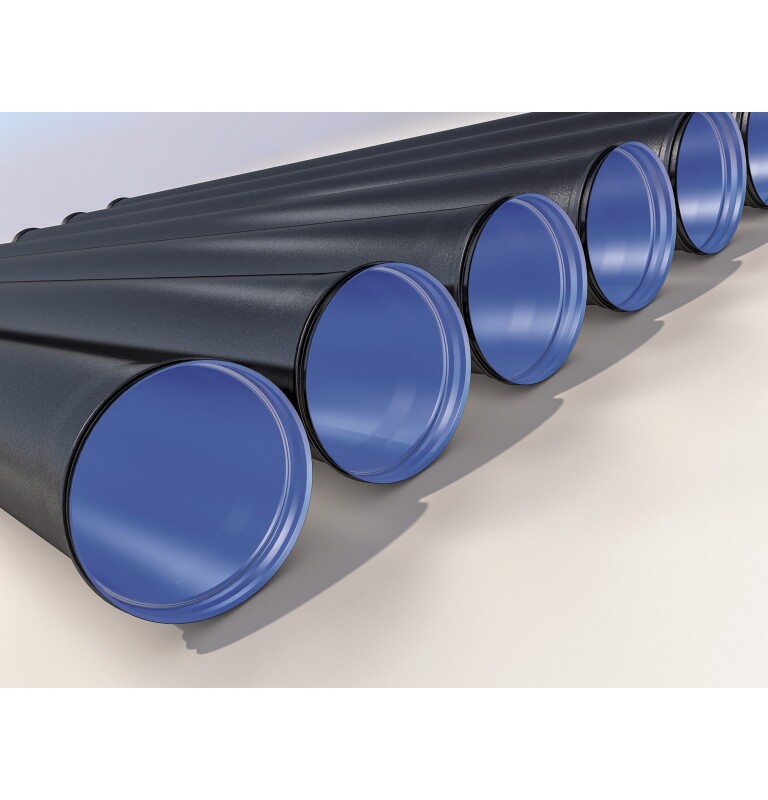

Internal tank coating
Resilient internal coating offers maximum corrosion resistance and trouble-free performance
Solar glass
Water is efficiently heated in the integrated storage tank the moment sunlight hits the solar glass
Clear heat insulation
Totally transparent insulation delivers maximum heat retention

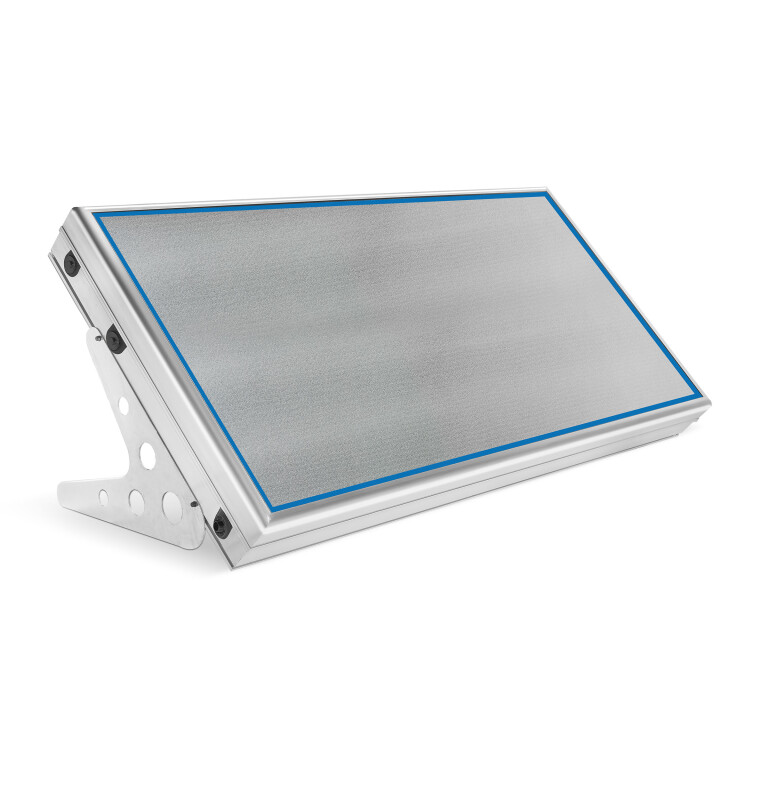

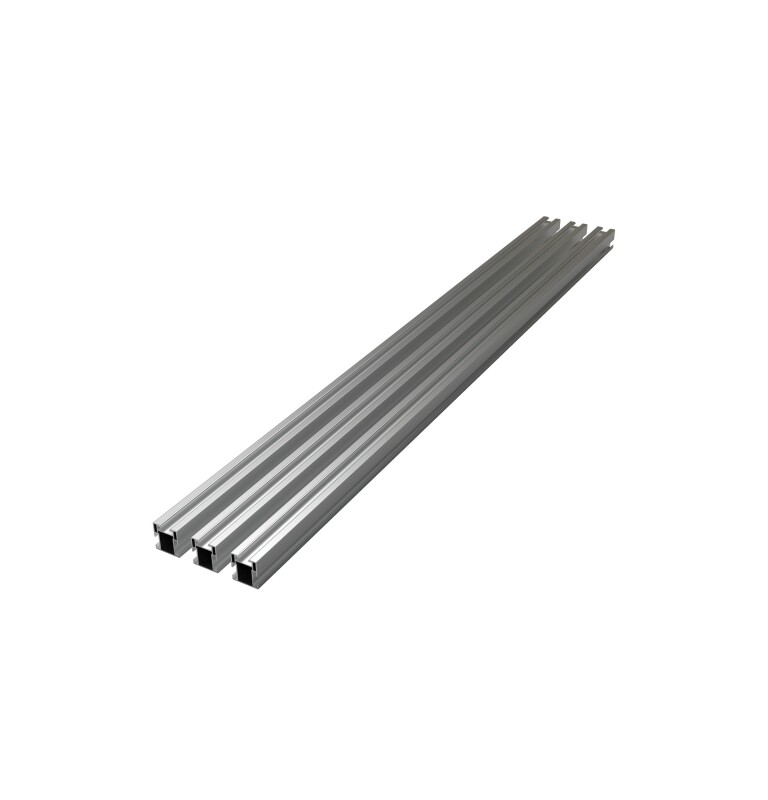

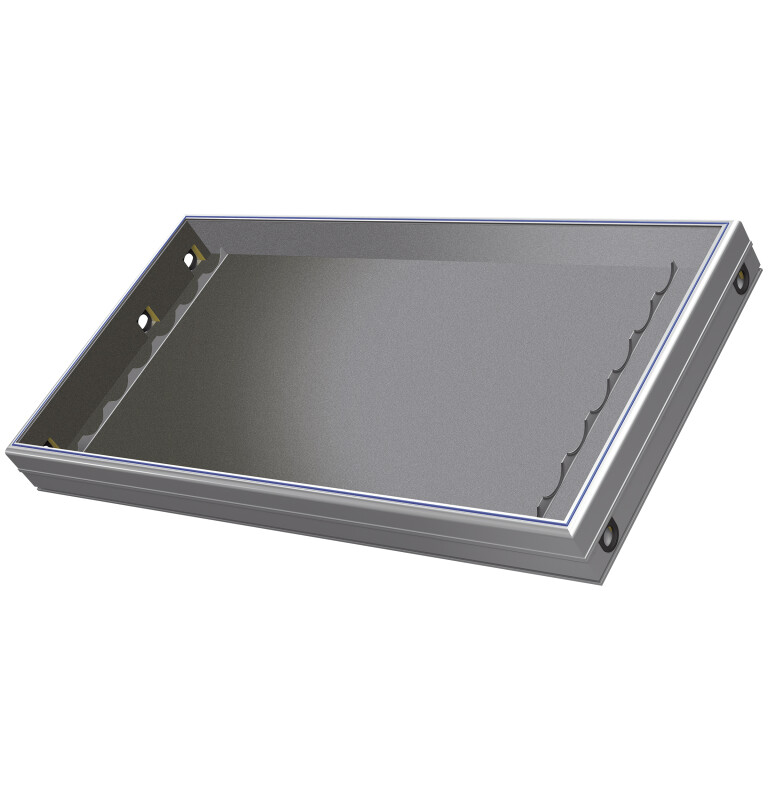

Innovative frame
Aluminum profiles and rigid foam insulation at the sides and rear of the solar collector provide total durability
ENERGY STAR® certified*

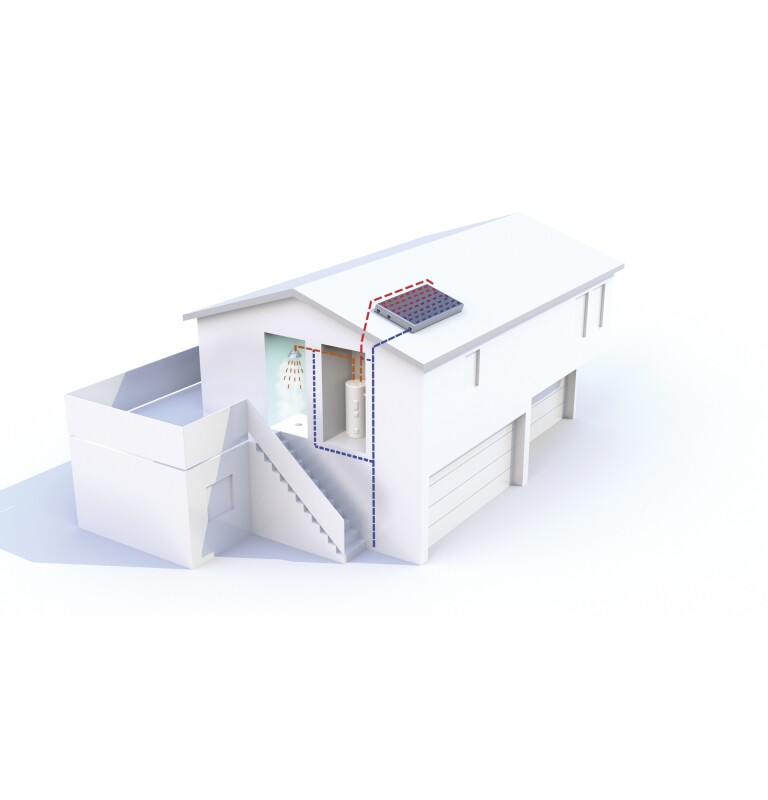

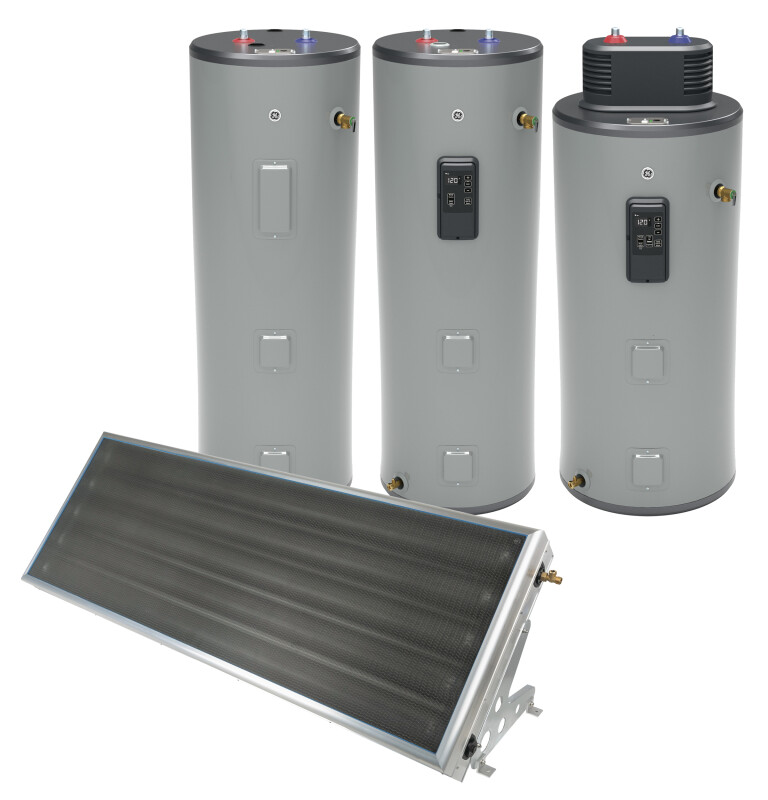

Meets or exceeds federal guidelines for energy efficiency and provides year-round energy and money savings *Applies to GT50C10BAM model when paired with a tankless gas water heater
Certifications
California Prop 65
Specifications
Other
| Collector outer dimensions (inches) | 86x43x8 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 152.1 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 192.1 lbs. |
| Total of Shipping Weight | 192.1 lbs. |
| Source | Manufacturer |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
WEIGHTS & DIMENSIONS
| Weight (with mount, with water) (lb) | 598 |
| Approximate Shipping Weight | 170 lb |

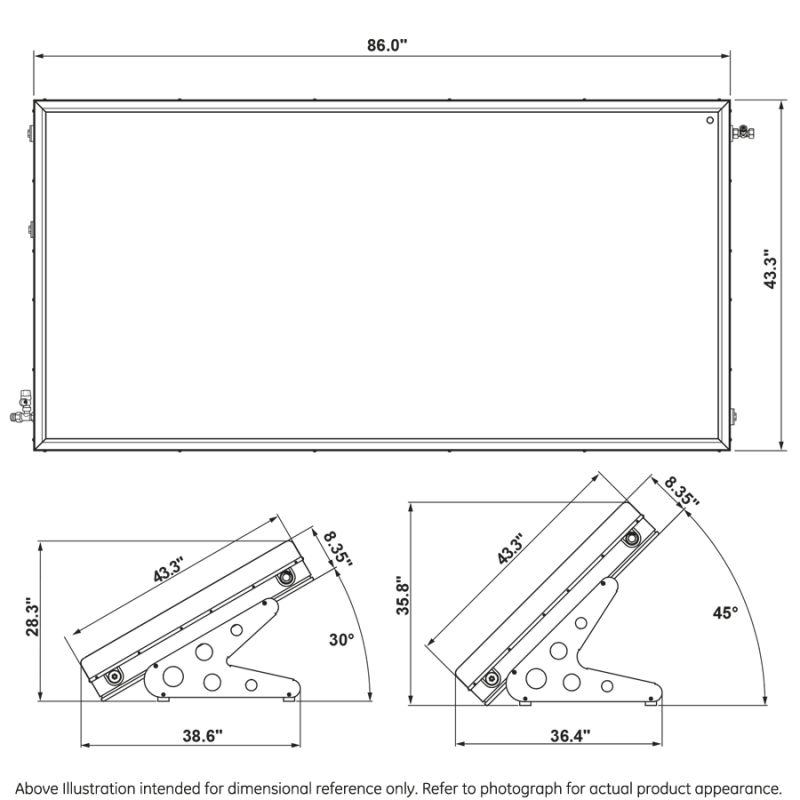

| Collector outer dimensions (inches) | 86x43x8 |
| Net Weight | 152.1 lb |
| Weight (with mount, no water) (lb) | 169 |
| Max height, mount 45/30 (inches) | 36/28 |
FEATURES
| Net Collector Area (ft²) | 23 |
| Gross area (ft) | 26 |
| Max. operating pressure (psi) | 60 |
| Heat transfer medium | Water |
| Volume hot water storage tank (gal) | 51 |
| Thermal insulation - storage tank (inches) | 1.2 |
| Product Type | Solar |
| Collector Inclination Angle from horizontal (degrees) | 10 to 75 |
| Cold/hot water connections (inches) | 3/4 MNPT |
CAPACITY
| Unit Capacity | 51 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts (Entire Appliance) | 10 Year |
| Labor (In Home) | 1 Year |
