Dacor 42-inch Built-in French Door
Model: DRF425300APDA
Color : Panel Ready
Key Features
Precise Cooling Technology
Hidden Touch Control Panel
Freshzone™
Icemaker
Internal Water Dispenser
Metal Cooling
Smart Connectivity
Description
Documents
Available from Appliances Outlet, serving customers throughout Cinnaminson.
Features
Precise Cooling Technology
Our Digital Inverter Technology maintains consistent performance with minimal temperature fluctuation. Our Digital Compressor offers superior performance compared to a standard A/C compressor.

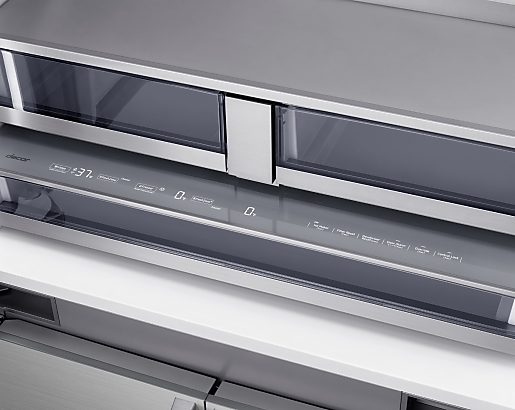

Hidden Touch Control Panel
Touch to reveal a display that regulates temperature to preserve freshness.
Freshzone™
Full-width storage drawer provides optimal temperature control for storing everything from meat and fish, to chilled drinks or deli. Adjustable temperature settings includes the option of safely defrosting items within a controlled space.
Icemaker
Creates crescent shaped ice.

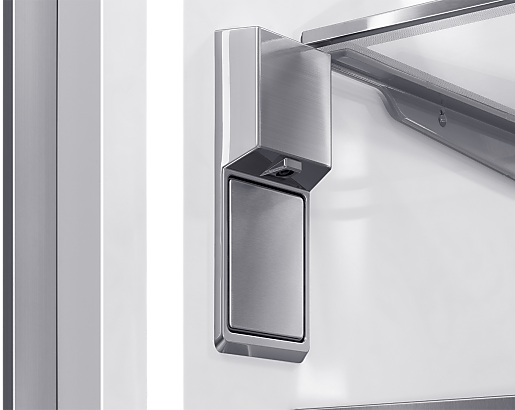

Internal Water Dispenser
Serves fresh, filtered water and easily fill cups or pitchers.
Metal Cooling
The stainless steel paneling helps maintain consistent temperature throughout the refrigerator.
Smart Connectivity
Whether you're near the kitchen or away from home, IQ Control with SmartThings® integration makes controlling your refrigerator effortless. Monitor everything from temperature and water filter status to care diagnostics. Never be caught without ice for a party by enabling ice-making functions all from the convenience of your mobile device.
Specifications
Dimensions & Weight
| Width | 41.75 in. |
| Height | 83.38 in. |
| Length | 25 in. |
| Weight | - |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 46.75 in. |
| Shipping Height | 88.38 in. |
| Shipping Length | 30 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 50.36 ft³ |
| Dimensional Weight | 626.06 lbs. |
| Total of Cubes | 50.36 ft³ |
| Total of Dimensional Weight | 626.06 lbs. |
Overall Dimensions
| Width | 41-3/4" |
| Height | 83-3/8" |
| Depth | 25" |
Interior Capacity
| Total Unit Gross Capacity – Aham | 23.5 cu. ft. |
| Refrigerator Gross Capacity | 16.8 cu. ft. |
| Freezer Gross Capacity | 6.7 cu. ft. |
Interior Configuration
| Full Width Shelves – Refrigerator | 1 ea. |
| Adjustable Shelves – Refrigerator | 4 ea. |
| Shelf Material – Refrigerator | Tempered Glass Shelves w/Metal Trim |
| Full Extension Drawers At 90° Door Opening Angle | Yes |
| Freshzone Drawer | Yes – Cheese (37°F) / ColdDrinks (33°F) / Mea.t (29°F) |
| Crisper Drawers | 2 ea. |
| Door Bins -refrigerator | 6 ea. |
| Freezer Drawers | 4 ea. |
Temperature Ranges
| Refrigerator – Power Cool | 34°F (1°C) |
| Freshzone™ Drawer | 37°F (3°C) / 33°F (1°C) / 29°F (-1°C) |
| Freshzone™ Plus Compartment | -8°F (-23 °C) to 33°F (1 °C) |
| Freezer | -8°F (-23°C) to 5°F (-15°C) |
| Freezer – Power Freeze | -8°F (-23°C) |
| Refrigerator | 34°F (1°C) to 44°F (7°C) |
Requirements
| Electrical | 115V, 60Hz, 6A |
Accessories
| Rat42amaasr/da - 42" French Door Panel Kit, Contemporary, Silver | Yes |
| Rac00wfaaaa/da - Water Filter | Yes |
| Rac00dfaaaa/da - Deodorizing Air Filter (set Of 6) | Yes |
| Rat42amaams/da - 42" French Door Panel Kit, Contemporary, Graphite | Yes |
| Adrf42mhaasr - 42" French Door Handle Kit, Contemporary, Silver | Yes |
| Adrf42mhaams - 42" French Door Handle Kit, Contemporary, Graphite | Yes |
| Rac42tkbbsr - 42" French Door Kick Plate, Silver | Yes |
| Rac42tkbbms - 42" French Door Kick Plate, Graphite | Yes |
Efficiency
| Energy Star Qualified | Yes |
| Annual Energy Consumption | 629 kWh |
